Product Description

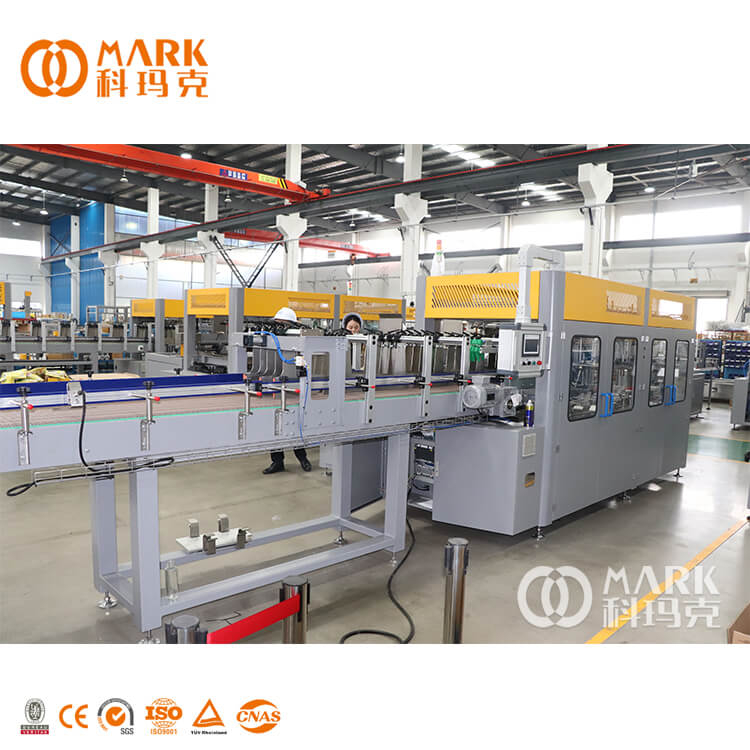

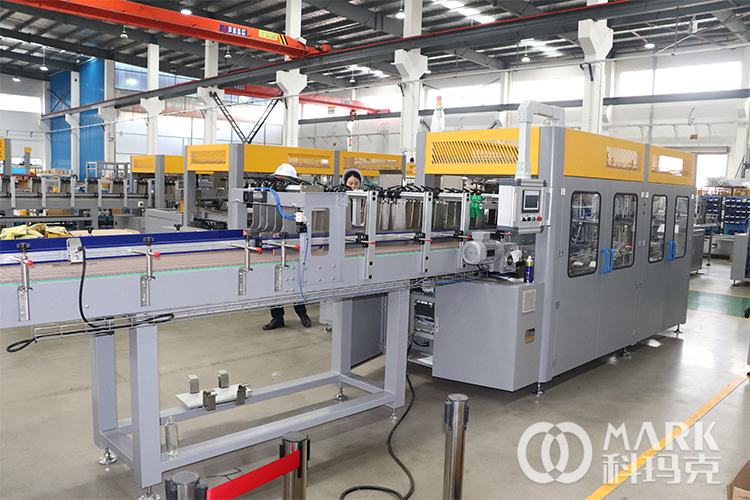

One Piece Carton Sealing Packing Machine For PET Bottle Beverage

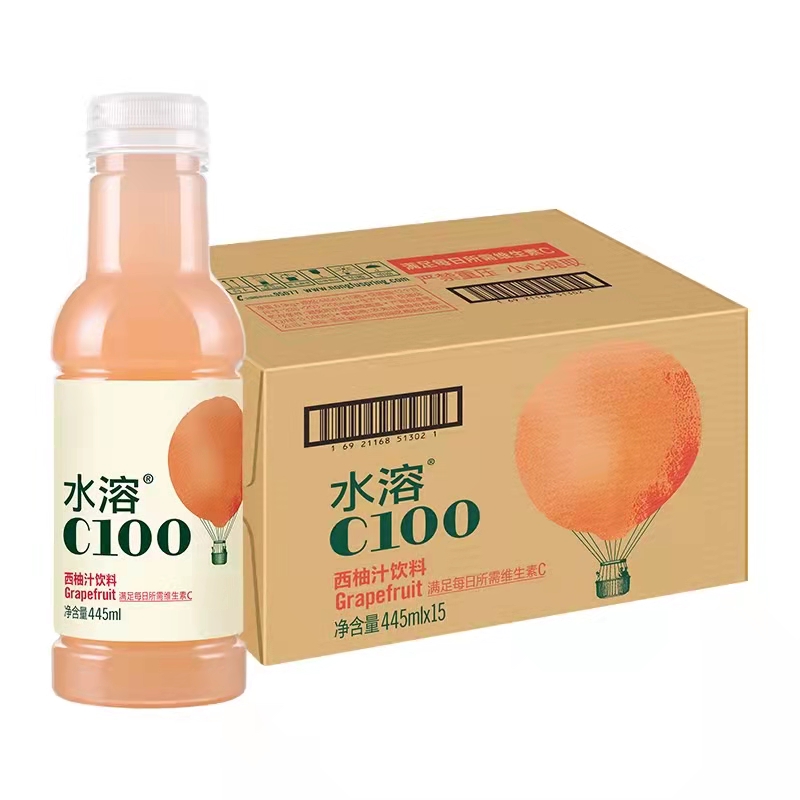

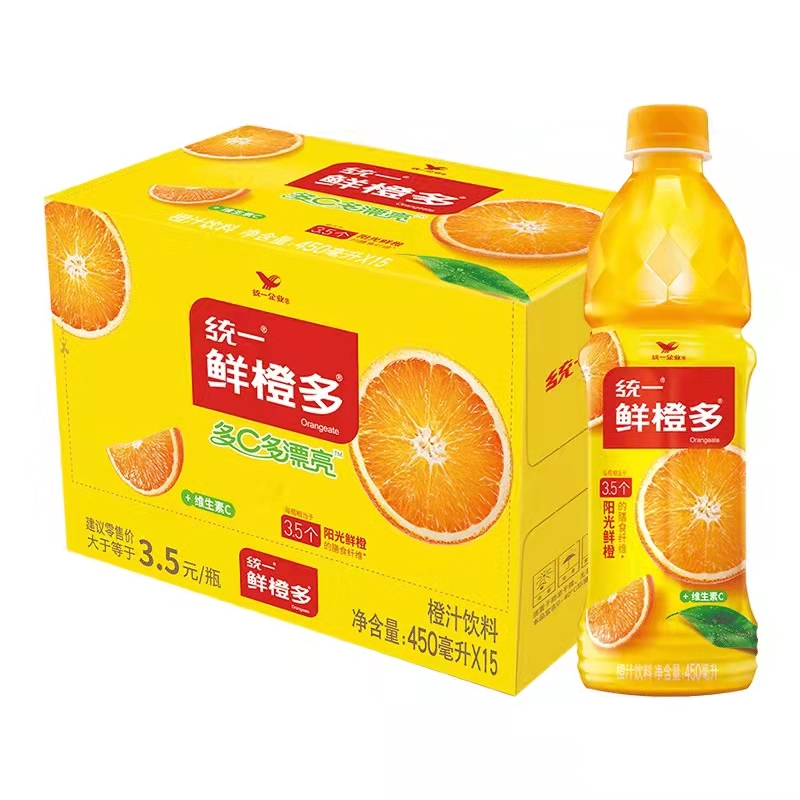

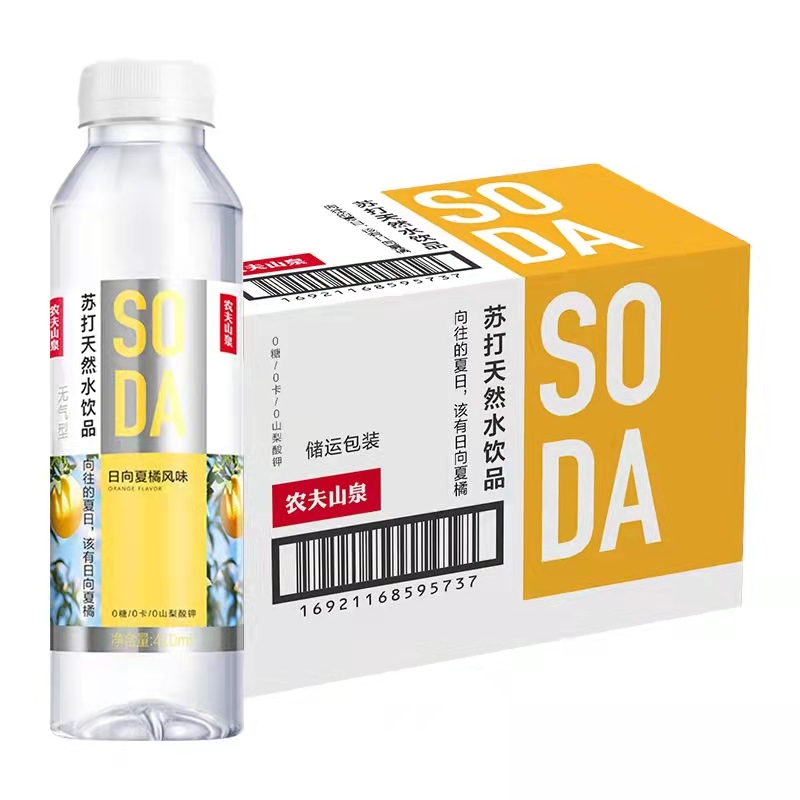

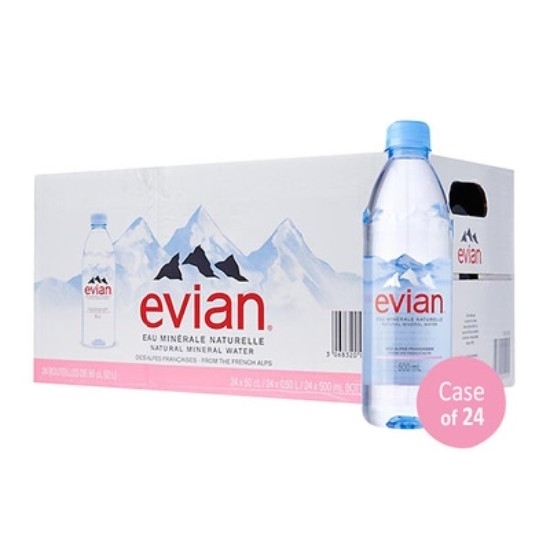

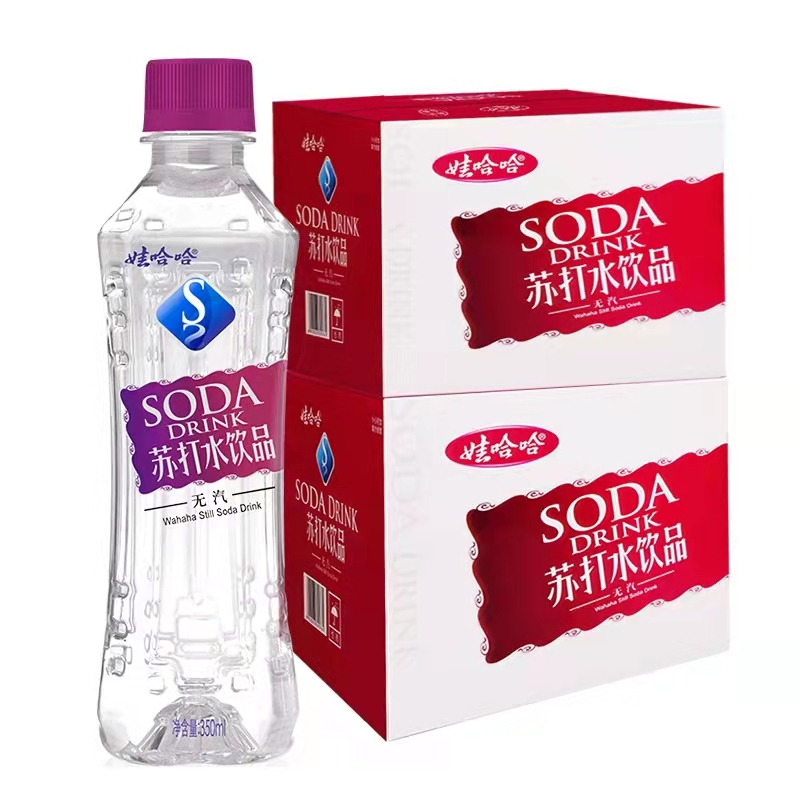

Specially designed for packaging metal cans, paper cans, glass jars, glass bottles, plastic jars, and plastic bottles, the series of caton packing machine is a continuous motion wraparound case packer capable of reaching speeds up to 15 cases/trays per minute.

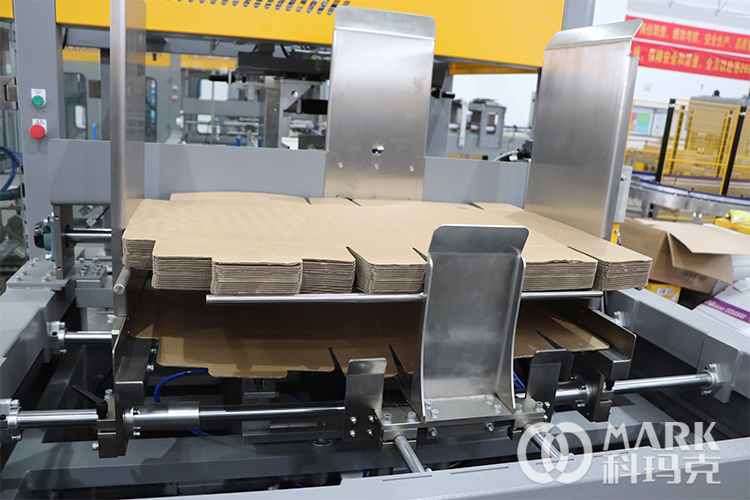

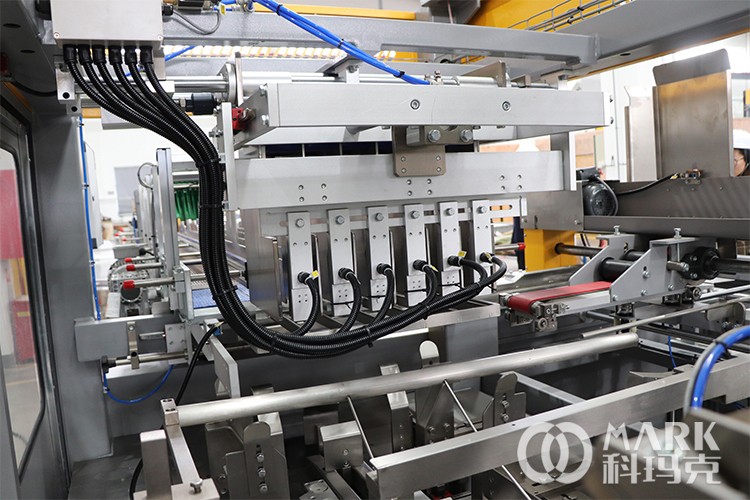

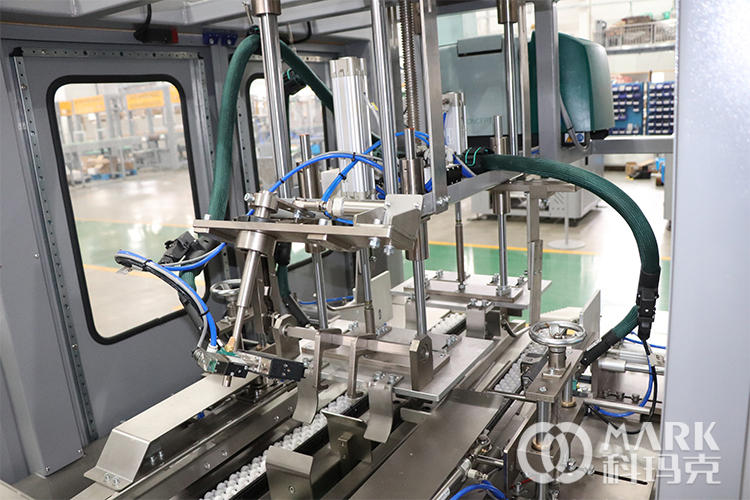

This machine receives the product, groups the product into patterns, automatically feeds corrugated blanks, forms the blanks around the product pattern, applies hot-melt glue, holds the wraparound case in compression, and produces a finished, shippable case. The system is easily adjustable for varying product sizes, speeds, and product patterns. The machine runs trays as well as wraparound cases.
A rugged machine that minimizes labor requirements, increases productivity and reduces packaging materials. The machine integrates easily into new or existing lines of packaging equipment.
 | detail description |

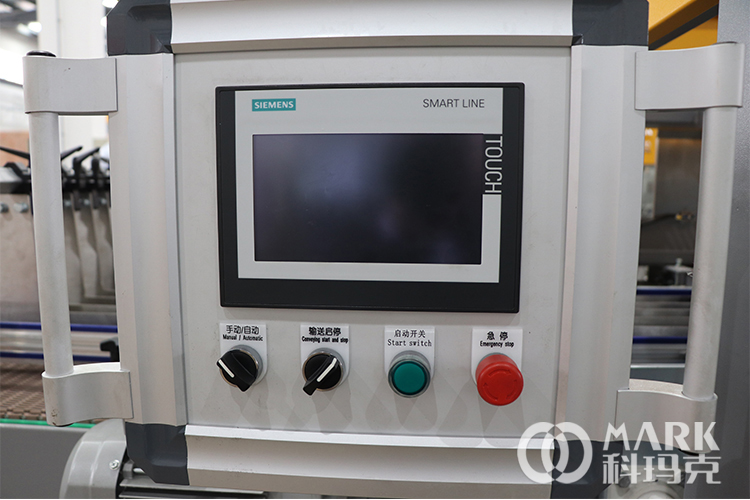

Automatic system control cabinet:

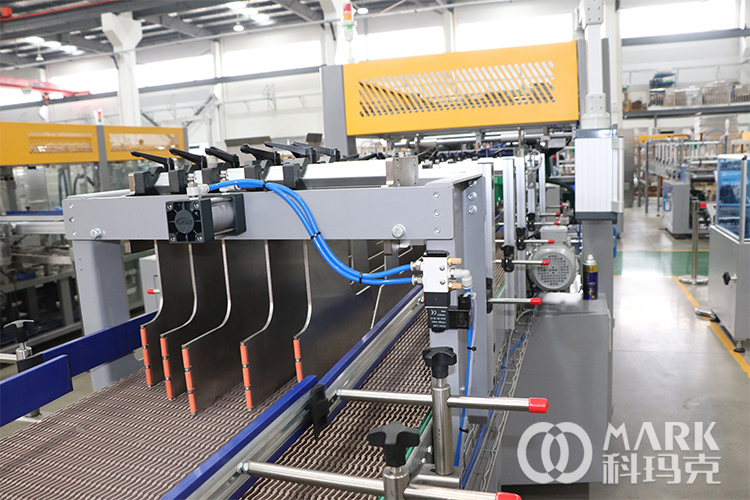

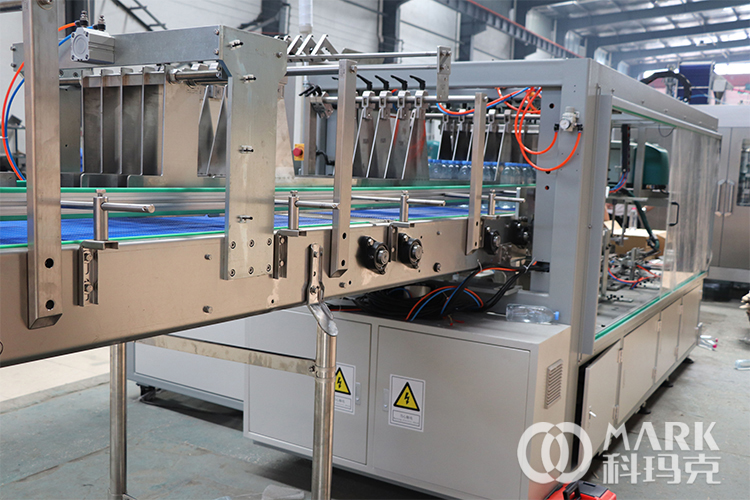

Conveyor system:
The bottles and cans will be divided and inspected on this conveyor.
 |  |  |
 |  |  |
 |  |  |
| Packing speed | 15 pcs/min |
| Packing material | cardboard |
| Power | 8KW |
| Applicable container | plastic bottles, glass bottles and cans |
| Working pressure | 0.6-0.8Mpa |
| Hot melt glue solidify | 1-2 seconds |
| Whole dimension | L6450mm*W2700mm*H2150mm |
| Whole weight | 2800kg |
Main electrical configuration
| Component name | Adopt technique | Brand |
| Operating-screen | France | Schneider |
| PLC | France | Schneider |
| Frequency converter | France | Schneider |
| Servo control system | France | Schneider |
| Contactor | France | Schneider |
| Intermediate relay | Japan | Omron |
| Photoelectric switch | Germany | Leuze |
| Pneumatic cylinder | Taiwan | AIRTAC |
| Solenoid valve | Taiwan | Mindman |
| Hot-melt glue system | America | Nordson |
| Air source treatment | Japan | SMC |
