COMEPLETE PRODUCTION LINE

 3L-10L PET Bottle washing machine from the washer, filling, capping and conveyor line, linear motion and pneumatic operation, PLC control, high degree of automation is a square bottle, irregular bottle is the ideal equipment, production may be appropriate to adjust the equipment package.

 The machine is made of high-quality stainless steel. It will not rust and affect the filling beverage, which not only reach the standard of sanitation, but also prolong its using life.

 The machine is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.

 High precision filling nozzle/valves, PLC variable signal control, ensure high filling precision & filling smoothly & stably.

 Machine includes cap elevator, cap sterilization, bottle washing filling and capping. All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean. No bottle, no filling, no capping, and automatic stop when lack of bottle.

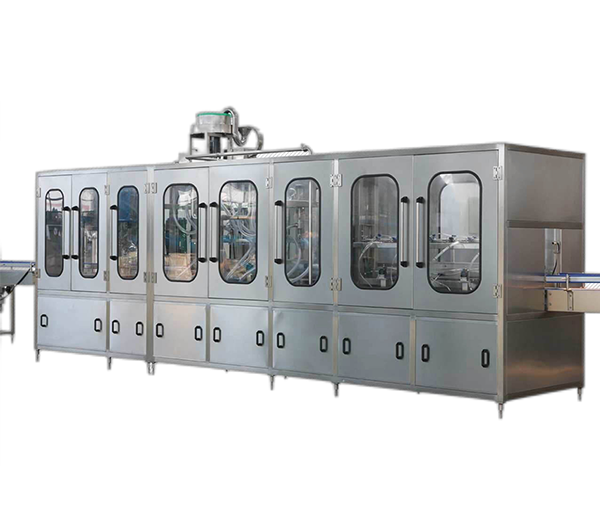

 This fully auto 5L mineral water washing filling capping machine can be used for 3L-10L bottle, and no need to change any spare parts when changing the bottle volume from 3L to 10L.

The high pressure blowing cylinder with high capacity. The cylinder works stably for any size of

    customer bottle type, durable and more powerful.

 The seal, the stretch use the parallel bars union and combined design,which is advantageous to the

    product formation.

 PLC control system, the operaton is easy.

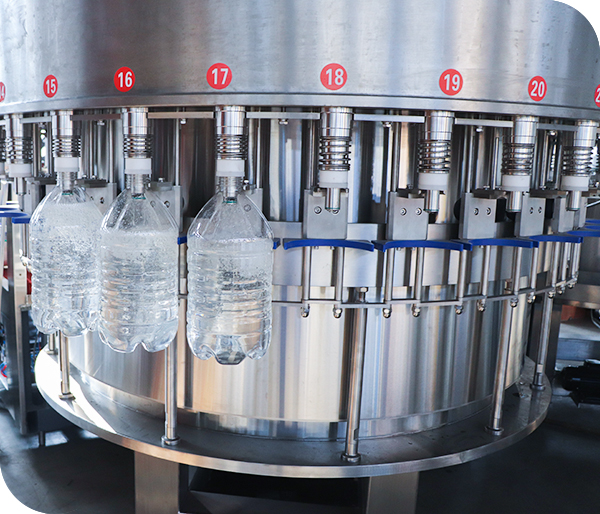

 CGF series filling machine is specially used for filling 3L to 10L bottled water.

 The machine is designed for bottles such as PP, PET, etc. It can be used for different shapes of bottles.

 The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, top quality

    line.

 The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, top quality

    line.

 Filling time is controlled by the PLC.

 The machine adopts high quality stainless steel 304 frame.

 This PET Bottle Water Filling Machine ( Washing Filling Capping 3 in 1 bottling Machine ) for big

    bottled non carbonated drinks such as purified water and mineral water, such as 3 liter bottle , 5 liter

    bottle , 6 liter bottle, 8 liter bottle , 10 liter , even 15 liter bottle .

   1、Washing: hold the bottle mouth tightly, rotate the filling plate and pour the bottle; Internal

    flushing and external spraying make the bottle completely clean.

   2、Filling: gravity filling with bottle mouth; The special reflux filling valve can avoid the leakage after

    filling and accurately control the liquid level.

   3、Capping: magnetic torque bottle holding type, which can minimize the damage rate of bottle cap

    and optimize the capping performance.

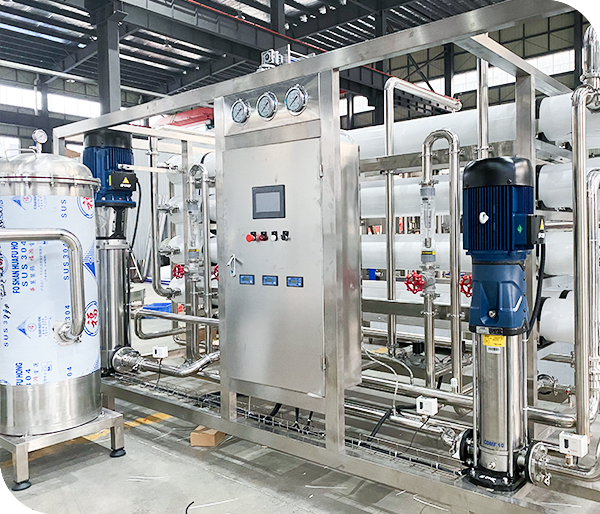

 The reverse osmosis device is an equipment to purify the saltine water with the action of pressure

    difference of semi permeable membrane.

 More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc., can

    be removed with the reverse osmosis. It becomes the most idea equipment for the modem program

    of pure water, hyper pure water, and airspace water.

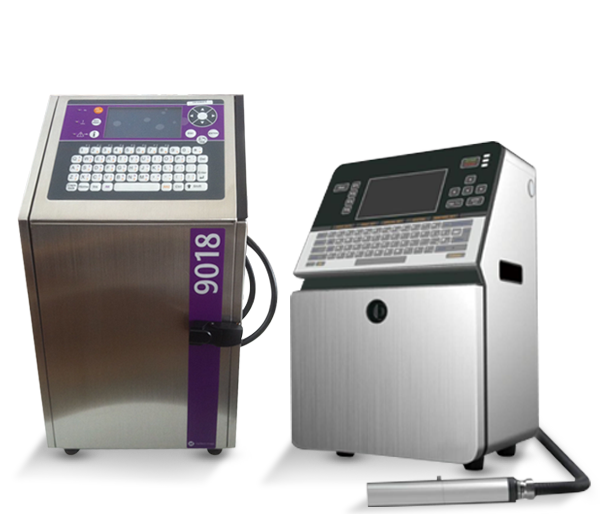

 8-inch full-color touch-screen control panel, stylish and easy to operate

 Simple appearance and easy-operate interface

 Multi-language design

 Printhead Thermostat to keep printer away from blocking

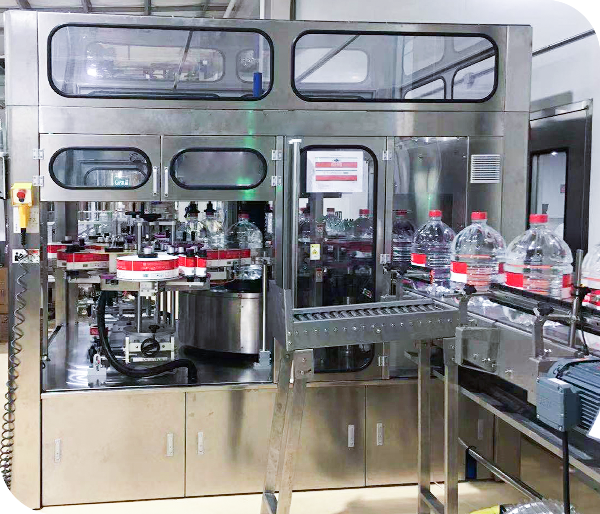

 The adhesive sticker labeling machine incorporates latest sophisticated User Friendly Label

    Dispensing applicator System with choice of Stepper or Servo Driven System.

 Various product infeed systems are available that provide precise product spacing and orientation.

    It can be used stand alone or integrated in-line and matching filling equipment speeds.
