CO-4T
COMARK
Product Description
↓ ↓

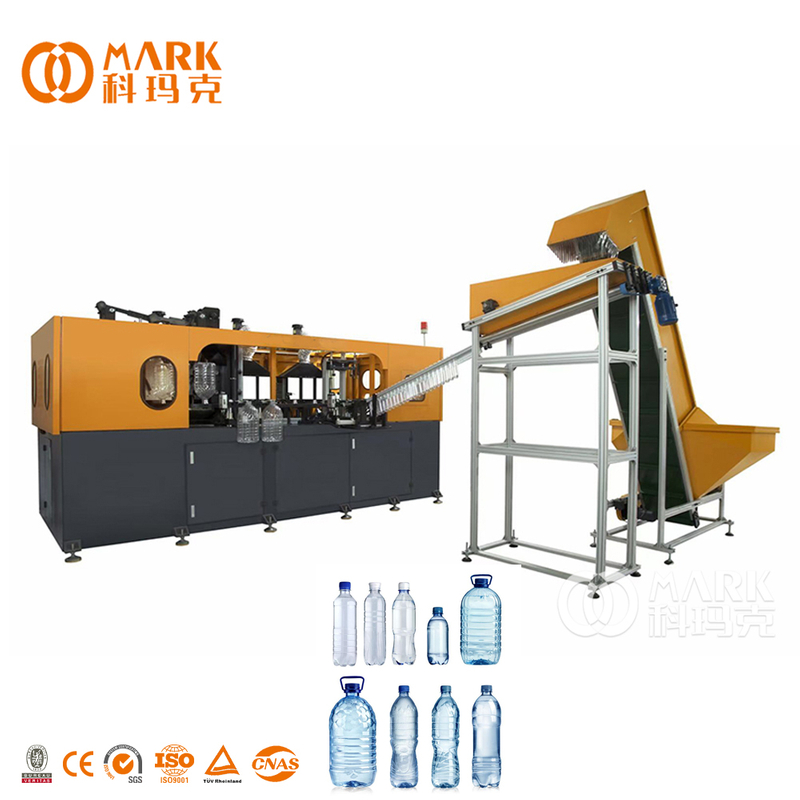

Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
| Model | CO-2 | CO-4C | CO-6C | CO-9S |
| Cavities | 2cavities | 4cavities | 6 cavities | 9cavities |
| Capacity | 2000 bottles/hour | 6000 bottles/hour | 9000 bottles/hour | 12000 bottles/hour |
| Application | water / Juice beverage / Carbonated Soft Drink PET bottle | |||
| Bottle volume | 0.1-2L | 0.1-2L | 0.1-2L | 0.1-2L |
| Body diameter | <100mm | <100mm | <100mm | <100mm |
| Max bottle height | <310mm | <310mm | <310mm | <310mm |
| Main power | 25KW | 49KW | 73KW | 85KW |

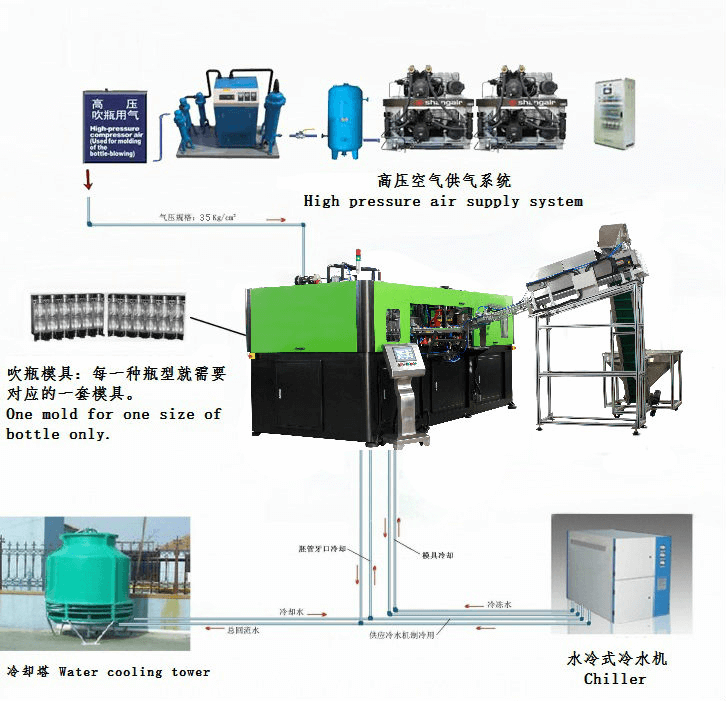

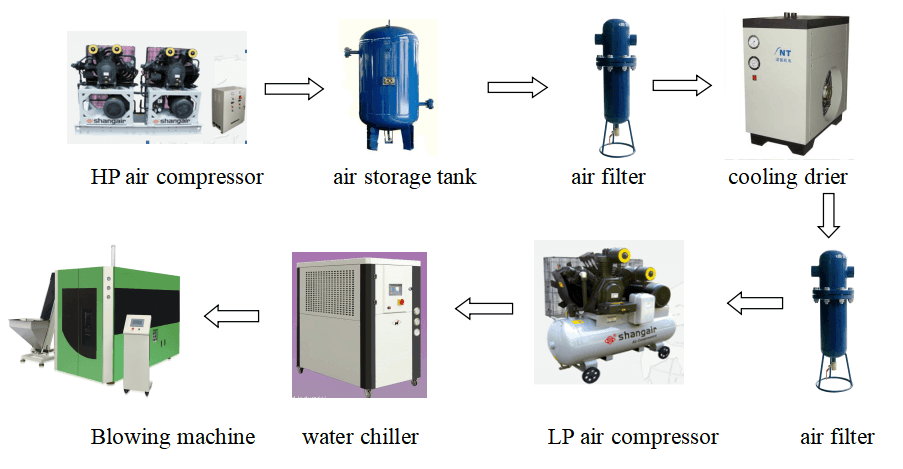

| Hp air compressor | 2.0 m3/min | 2.4 m3/min | 3.6 m3/min | 6.0 m3/min |
| LP air compressor | 1.0 m3/min | 1.6 m3/min | 2.0 m3/min | 2.0 m3/min |
| Machine sizes | 1.9*1.3*2m | 3.2*1.3*2m | 3.9*1.3*2m | 4.5*1.3*2m |
| Weight | 2000kg | 3600kg | 3800kg | 4500kg |
