Product Description
5 gallon water filling machine is specialized for 5 gallon bottle water production. The whole machine include washing machine, filling machine and capping machine. It is ideal equipment for producing mineral water and pure water. The all machines are mainly made of SUS304 stainless steel. The main electric components are chosen from international famous brand, such as OMRON, MITSUBISHI and so on and air channel system are chosen from Taiwan AirTAC brand.
Prodcution Application

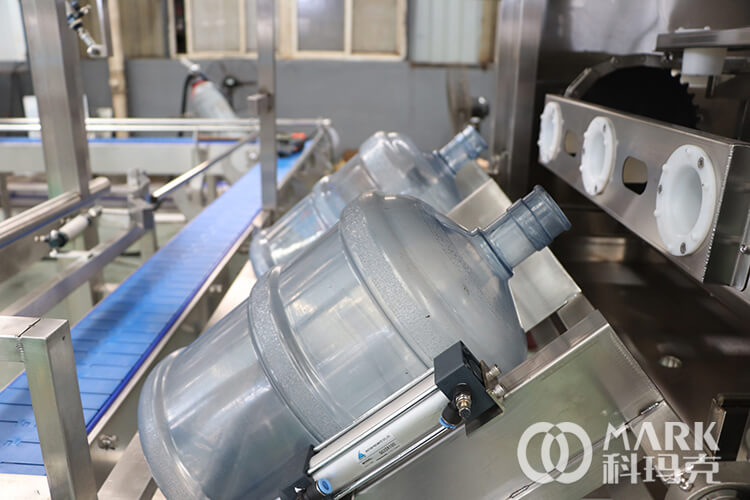

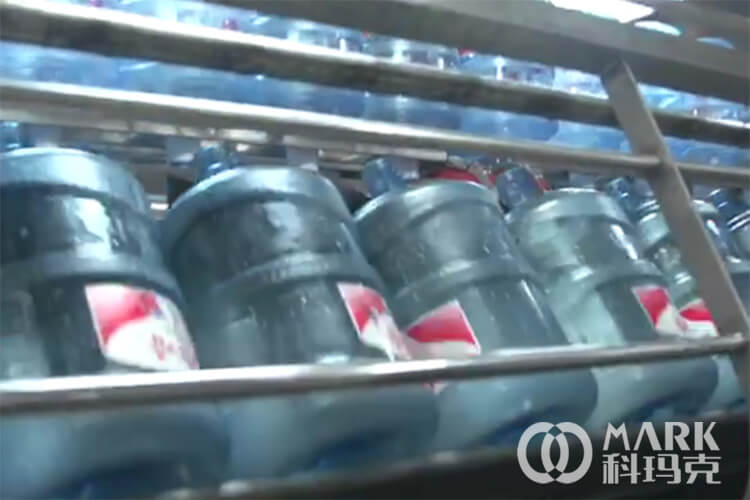

Bottle Loader

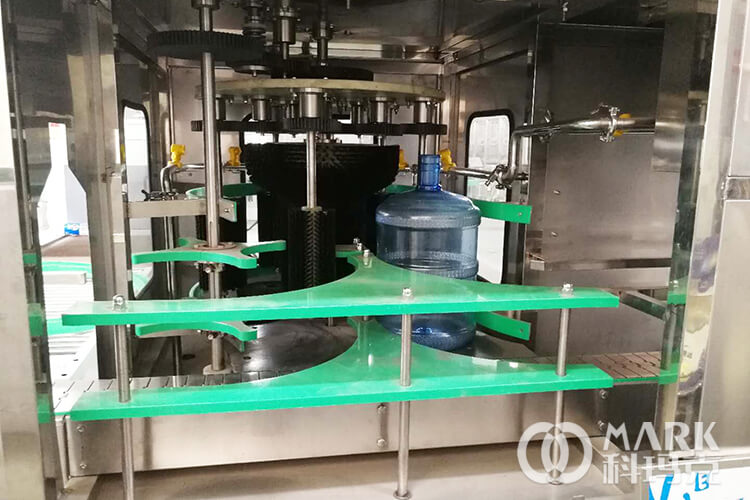

Washing Head
Function : washing bottle inside and outside dust .

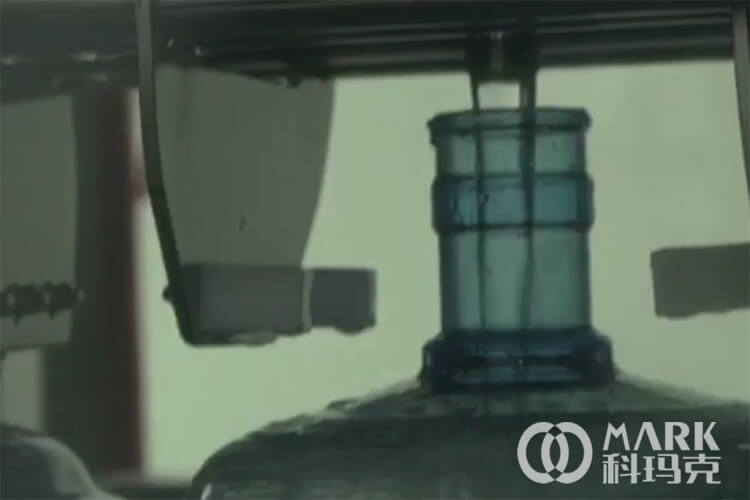

Filling Head
Fucntion : filling water into bottle .

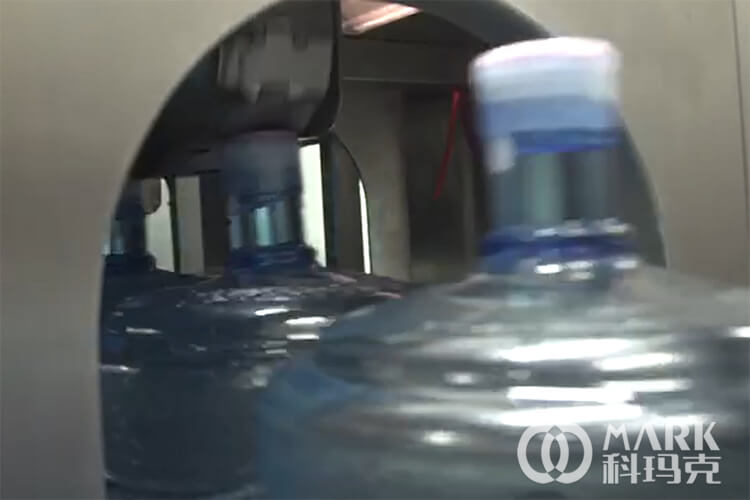

Capping Head
Function : put caps on bottle .
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 9 | 12 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |

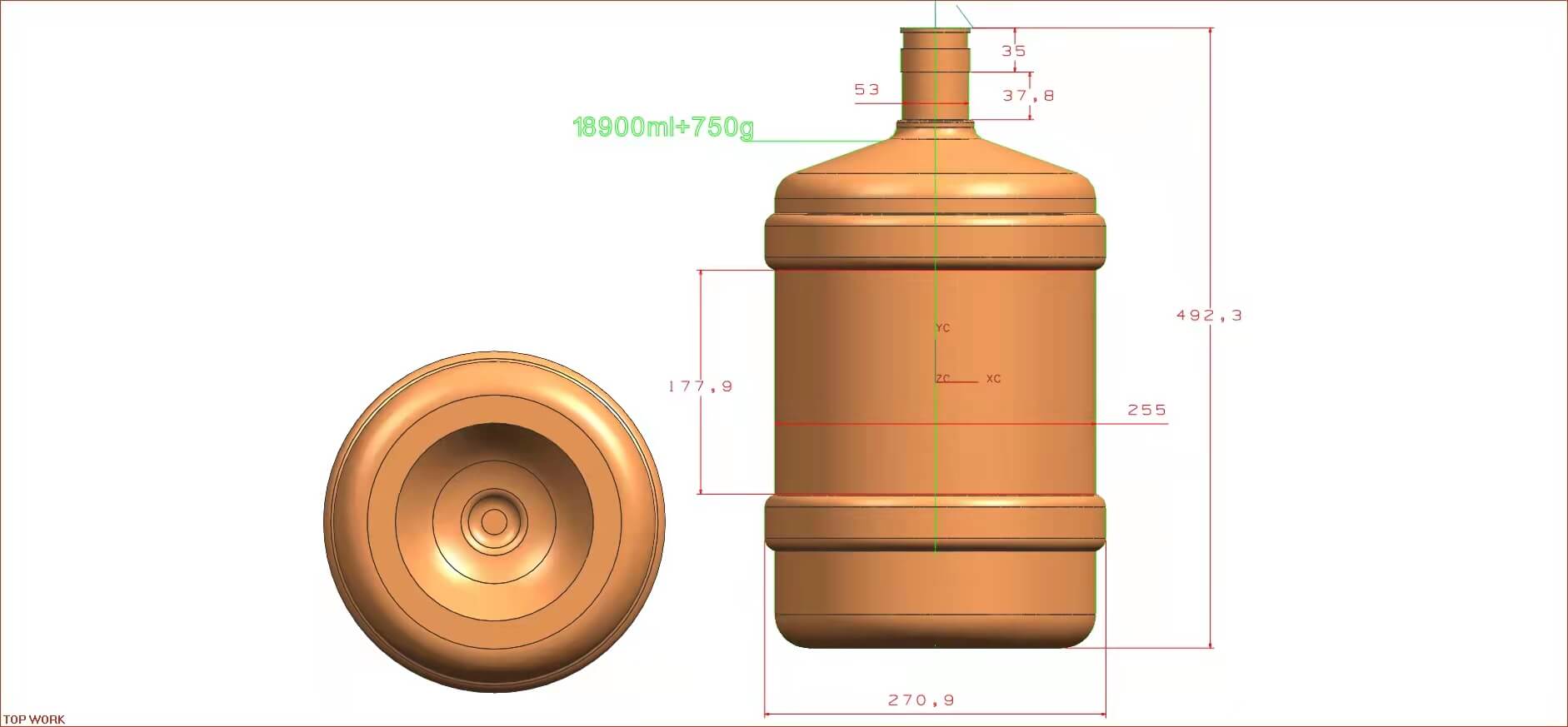

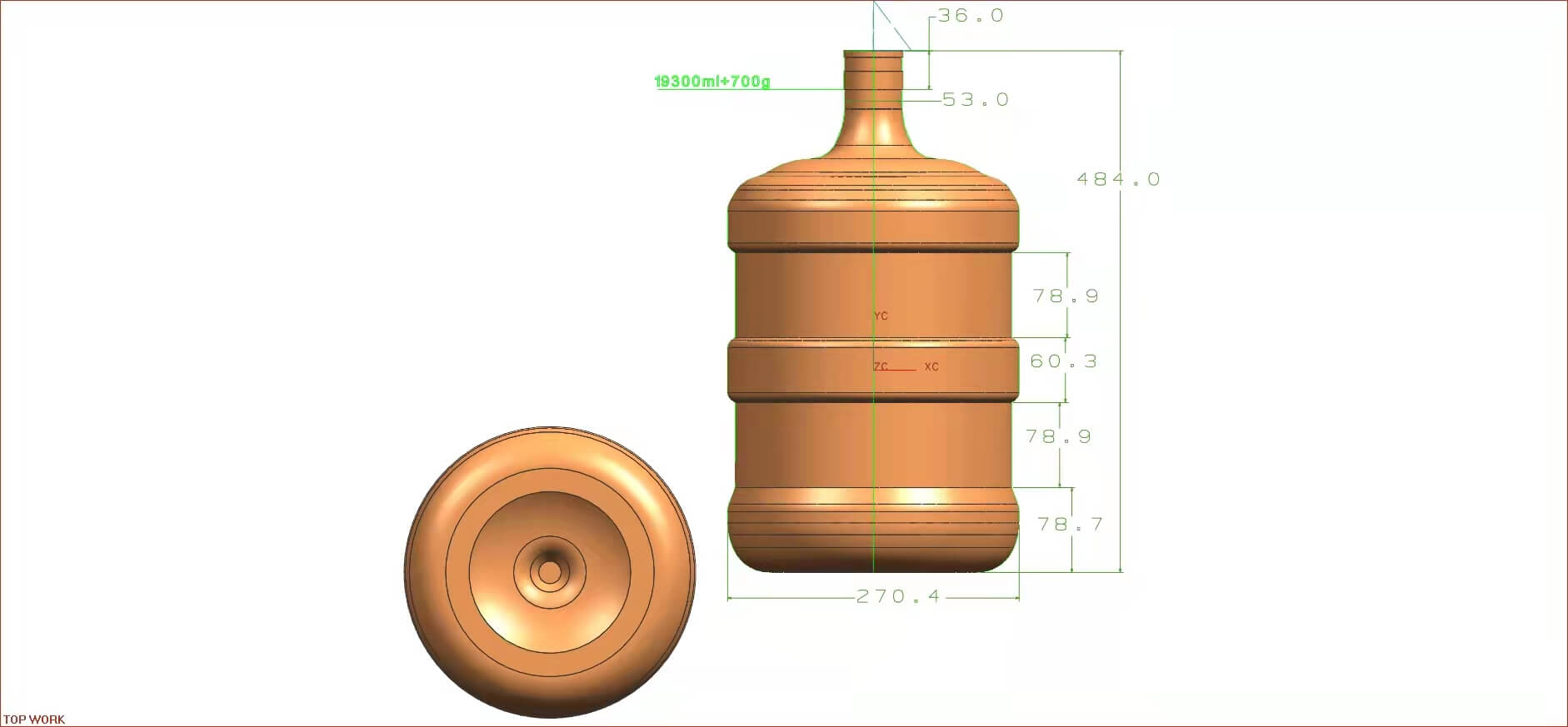

| Barrel Size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity(B/H) | 100-150 | 200-300 | 350-450 | 600 | 900 | 1200 |
| Gas pressure(mpa) | 0.4 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m3/min) | 0.6 | 0.6 | 0.6 | 1.5 | 2.2 | 3 |
| Motor Power(kw) | 3.8 | 3.8 | 4.8 | 8.5 | 8.5 | 8.5 |
| Rated volatage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Outline dimension(mm) | 3205*800*1800 | 3550*800*1800 | 3550*1200*1800 | 3650*1500*1800 | 2200*1860*2700 | 2560*2350*2750 |
| Weight(kg) | 2500 | 2800 | 4000 | 5500 | 7500 | 9500 |

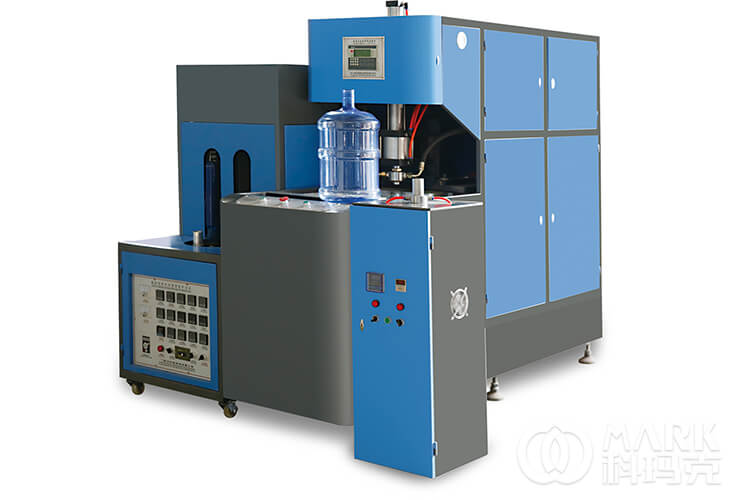

Semi Automatic Blowing Machine

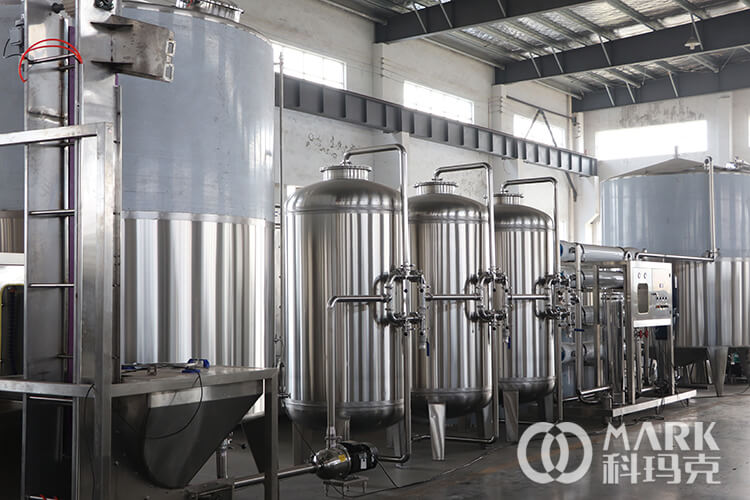

Water Purified Machine
Outside Barrel Brusher

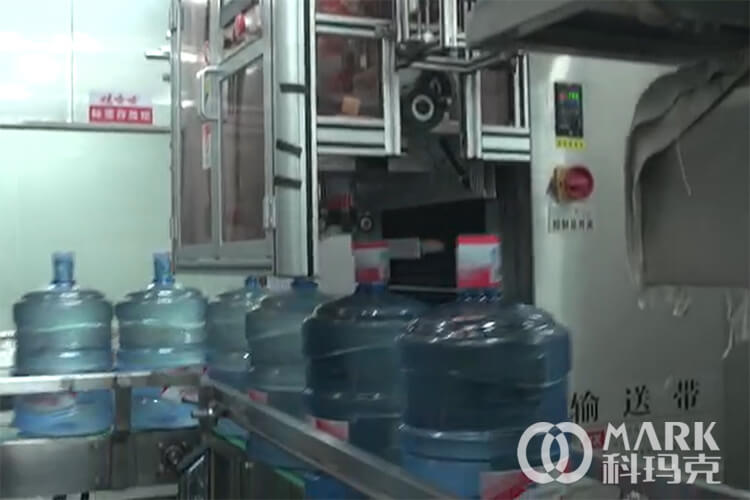

Cap Sealing Machine

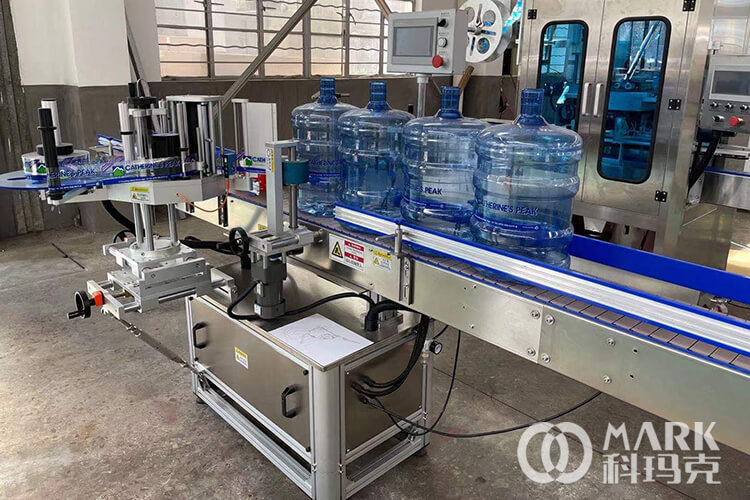

Adhesive Sticker Labeling Machine
